Product

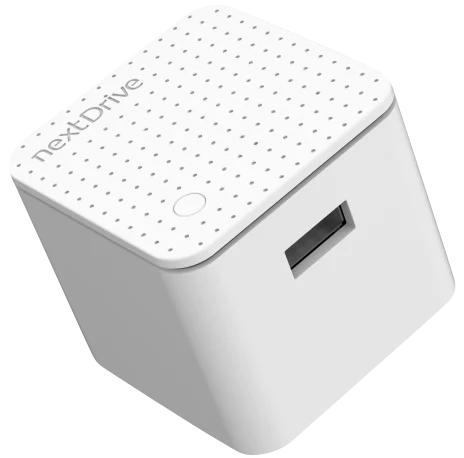

Cube Smart Energy Gateway

01.

Product／

Cube smart energy gateway, with built-in Wi-SUN, Wi-Fi, and BLE communication interfaces, connects to smart electric meters wirelessly, and obtains detailed electricity data through a dedicated APP. It can also be paired with home electrical appliances using ECHONET Lite to regulate their electricity consumption.

02.

Advantage ／

Convenient design, plug-in and use

Good Design Award winner and the smallest smart energy gateway in the world. Simply plug it in a socket at home, and it can be used immediately.

Supports multiple connection specifications

Can support Wi-SUN, Wi-Fi 2.4G, and BLE on-line control; certified by ECHONET Lite certification; can be connected to multiple electrical devices and widely used in different scenarios.

Next-generation
energy management hub

Conforms with Japan’s HEMS specifications; can acquire information on energy creation, storage, and conservation simultaneously; and serves as an infrastructure for the development of multiple power services.

Modular and high extensibility

Can be used with IoT peripheral devices developed by NextDrive, while providing an API to facilitate a serial connection of third-party devices to the Cube system.

03.

Specification ／

CPU

Quad-Core ARM Cortex-A7

Memory

1GB

Storage

16GB

Data Security

OPTIGA™

Wi-SUN

BP35C0

Wi-Fi

802.11(a/b/g/n/ac)

Bluetooth

BLE 4.2

I/O

USB2.0 Type A x 1

Power Consumption

2.5W(Max)

Operating Temperature

0 °C ~ 40 °C

Storage Temperature

-20 °C ~ 60 °C

Humidity

20 % ~ 80 % (No condensation)

Dimensions

48 x 48 x 43 mm

Certification

ECHONET Lite/AIF/PSE/Telec/VCCI/NCC/BSMI

Be Pioneers

Jointly Explore the Potential of Energy Data
